Boxer P

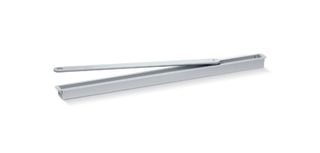

Guide rail Boxer P 20.7 mm * With an overall height of 20.7 mm and lever for double-action doors (Boxer 2-4 only)
- End position correction of +/- 0.8° possible
- With screwed slide block
- Retention force of the hold-open mechanism can be adjusted
Application Areas
- Single leaf doors
- Integrated installation
- Right and left double-action doors
- To hold open on non-fire protection doors
Technical data
| Guide rail Boxer P 20.7 mm | |
| Length | 440 mm |
| Width | 31 mm |
| Height | 20.7 mm |
| opening restrictor upgradable | Yes |
| Hold-open function | Mechanical |
| Hold-open device can be switched on and off | Yes |
| Hold-open device can be overridden | Yes |
Downloads

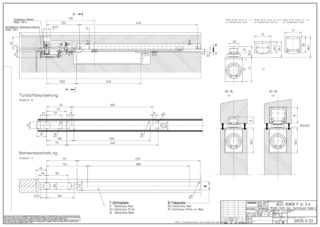

Guide rail Boxer 20.7 mm
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
