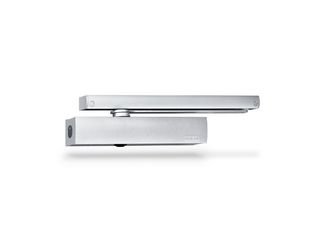

TS 5000 EFS 3-6 * Overhead door closer with guide rail for single leaf doors up to 1400 mm leaf width with electric free swing function
- Closing force with variable adjustment EN3-6
- Operating voltage 24 V DC
- Can be used for right and left hand doors without conversion
- Free swing function makes it possible to pass through the door with little physical force required
- Comfort hold-open function locks the door at the end of the free swing area
- External smoke switch control unit, whose signal closes the door automatically in the event of a fire
- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
- Visual closing force display for easy control of the setting
- All functions can be adjusted from the front
Application Areas
- Fire and smoke protection doors
- Right and left single-action doors
- Single-action doors up to 1400 mm leaf width

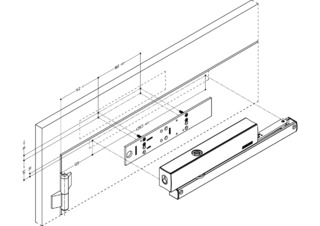

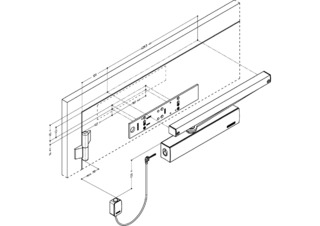

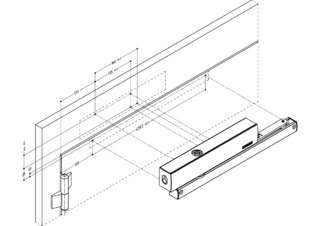

- Door leaf installation hinge side and transom installation hinge side (different variants)
- Hold-open systems with integrated hold-open function with free swing
- Barrier-free access in accordance with DIN 18040
Installation situations in reference objects and videos
Technical data
TS 5000 EFS 3-6 | |
Closing force in accordance with EN 1154 | EN 3 - 6 |
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm | 1400 mm |
Leaf width (max.) | 1400 mm |
Type of installation | Door leaf installation hinge side |
Opening angle (max.) | 180 ° |
Input voltage | 24 V DC |
Suitability for fire protection doors | Yes |
Free swing area | 85 ° - 160 ° |
Closing force adjustable | Yes, stepless |
Adjustable closing speed | Yes |
Latching action adjustable | Yes, via valve |
Back check integrated | No |
Position of closing force adjustment | Front |
Visual closing force display | Yes |
Hold-open function | Electrically, for free swing function |
