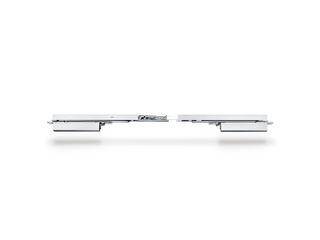

E-ISM guide rail Boxer small passive leaf * For passive leaves from 420 mm, with closing sequence control, electric hold-open device on both leaves and levers
- Supply voltage 24 V DC
- Retention force of the electromechanical hold-open device can be variably adjusted
- Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
- Vandalism protection through flexible Bowden cable
- Flexible repositioning of the Bowden cable release mechanism in the frame, e.g. with passive leaf lockings
- Minimal installation effort due to low number of individual parts and quick setting
Application Areas
- Double leaf doors with closing sequence control
- Hold-open systems with integrated hold-open device
- Integrated installation
- Right and left single-action doors
- Symmetrical and asymmetrical division of door possible
- Minimum hinge clearance 1230 mm, minimum width of the passive leaf 420 mm
Technical data
| E-ISM guide rail Boxer small passive leaf | |
| Input voltage | 24 V DC |
| Minimum hinge clearance | 1230 mm |
| Minimum passive leaf width | 420 mm |
| Standard conformity | EN 1155, EN 1158 |
| Width | 31 mm |
| Height | 30 mm |
| Hold-open function | Electrical |
| Hold-open device can be switched on and off | Yes |
| Hold-open device can be overridden | Yes |
| Hold-open range | 80 ° - 90 ° |
| Closing sequence control integrated | Yes |
| Flexible opening restrictor | Yes |
Downloads

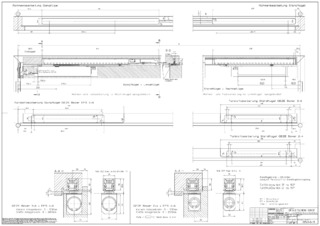

Door closer ISM / E-ISM Guide rail Boxer
