GEZE Boxer E-ISM

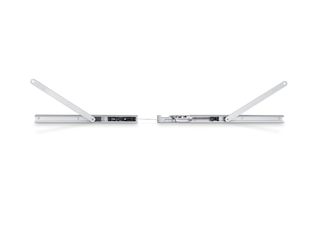

E-ISM guide rail Boxer * With closing sequence control, electrical hold-open device on both leaves and levers

ISM/guide rail, 2-leaf / E-ISM guide rail 1-leaf Boxer
  • Supply voltage 24 V DC
  • Retention force of the electromechanical hold-open device can be variably adjusted
  • Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
  • Vandalism protection through flexible Bowden cable
  • Flexible repositioning of the Bowden cable release mechanism in the frame, e.g. with passive leaf lockings
  • Minimal installation effort due to low number of individual parts and quick setting
Show more
  • With screwed sliding block
Contact us

With closing sequence control, electrical hold-open device on both leaves and levers

Application Areas

  • Double leaf doors with closing sequence control
  • Hold-open systems with integrated hold-open device
  • Integrated installation
  • Right and left single-action doors
  • Symmetrical and asymmetrical division of door possible
  • Minimum hinge clearance 1300 mm, minimum width of passive leaf 540 mm

Product specifications

E-ISM guide rail Boxer
Input voltage 24 V DC
IP rating IP43
Minimum hinge clearance 1300 mm
Minimum passive leaf width 540 mm
Approvals Hold-open device tested in accordance with EN 1155, Door closing sequence selector tested in accordance with EN 1158
Width 31 mm
Height 30 mm
Opening restrictor integrated No
opening restrictor upgradable No
Hold-open device Electrical
Hold-open device can be switched on and off Yes
Hold-open device can be overridden Yes
Hold-open point 80 ° - 120 °
Integrated smoke switch No
Integrated power supply No
Integrated closing sequence control Yes
Height correction possible No
Flexible opening restrictor Yes
