Terminal for bi-directional escape routes - T 320 Series

T 320 UP control unit * Slave control unit for bidirectional escape routes with a TZ 320 or TZ 322

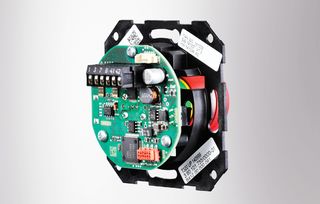

Control unit T 320 UP
  • Flat impact cover enables fast and safe activation of the illuminated emergency push button in panic situations
  • Coloured connectors facilitate electrical connection
Contact us

Application Areas

  • Terminal functions as additional interface for a TZ 320 to trigger an indirect release of a bi-directional emergency exit
  • Realisation of a bidirectional emergency exit
  • Realisation of an escape balcony
  • Designed for installation in 55-type flush-mounted ranges
  • Can be mounted in flush-mounted sockets 62.5 mm deep

Technical data

T 320 UP control unit
Type of installation Flush-mounted installation
Service temperature -10 - 50 °C
IP rating IP30
Operating voltage 24 V DC
Current consumption 100 mA
Supply voltage 24 V DC
Sabotage contact Yes
Emergency push button Yes
Visual display yes
Volume 75 db
With ribbon cable Yes
Conforms to the EltVTR (guidelines for electronic locking systems) Yes
