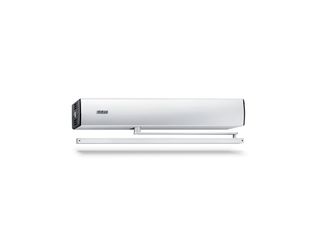

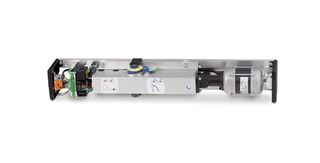

TSA 160 NT * Electrohydraulic swing door drive for single leaf doors up to 250 kg
- Closing force with variable adjustment EN3-6
- Opening and closing speed can be individually adjusted
- Hydraulic latching action which accelerates the door shortly before it is closed
- Mechanical and electrical closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
- Vestibule function controls the opening and closing of two consecutive doors (interlocking door system)
- Integrated back check, slows down doors that are thrown open forcefully
- Automatic reversing detects an obstacle and returns to the opening position
- Push & Go function triggers the automatic drive following light manual pressure on the door leaf

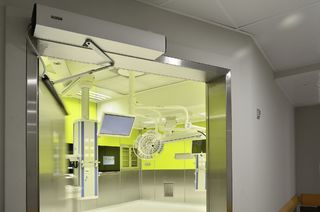

- Drive can be used with roller guide rail or link arm

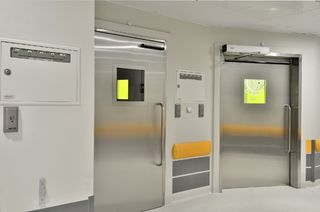

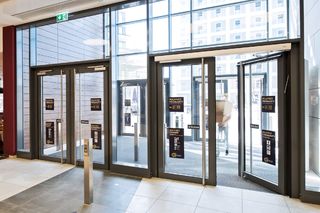

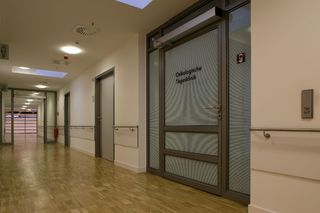

Application Areas
- Single-action, single leaf, right and left closing doors
- Single-action doors up to 1400 mm leaf width or 250 kg weight
- Interior and exterior doors with high access frequency

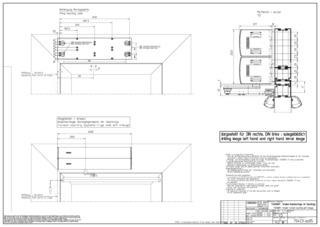

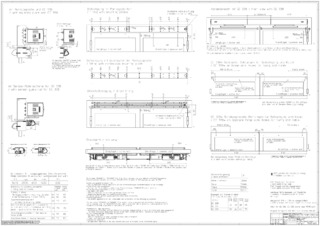

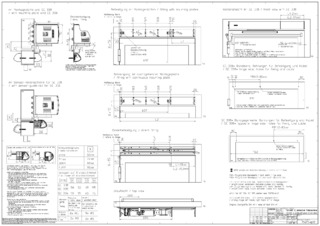

- Door leaf installation and transom installation

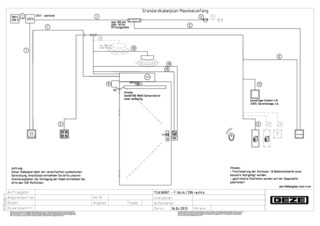

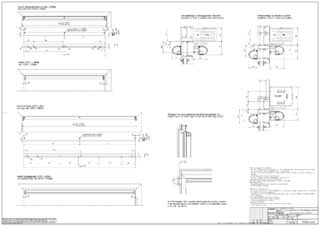

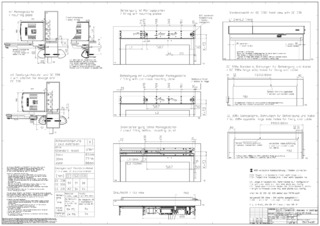

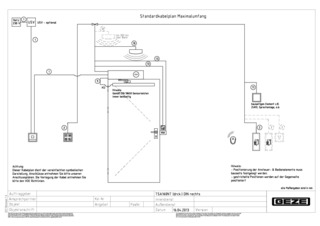

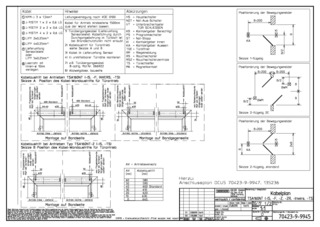

Technical data
| TSA 160 NT | |
| Height | 100 mm |
| Depth | 121 mm |
| Leaf weight (max.) 1-leaf | 250 kg |
| Distance centre door hinge-drive axis (min.-max.) 2-leaf | 1470 mm - 2800 mm |
| Leaf width (min.-max.) | 690 mm - 1400 mm |
| Reveal depth (max.) | 400 mm |
| Door overlap (max.) | 20 mm |
| Drive type | Electrohydraulic |
| Opening angle (max.) | 115 ° |
| Spring pre-load | EN3 - EN6 |
| DIN left | Yes |
| DIN right | Yes |
| Transom installation opposite hinge side with link arm | Yes |
| Mechanical latching action | Yes |
| Electrical closing sequence control | Yes |
| Disconnection from mains | Not available |
| Activation delay (max.) | 10 s |
| Operating voltage | 230 V |
| Power rating | 300 W |
| Power supply for external consumers (24 V DC) | 1200 mA |
| Service temperature | -15 - 50 °C |
| IP rating | IP20 |
| Mode of operation | Off, Automatic, Permanently open, Shop closing, Night |
| Type of function | Fully automatic |
| Automatic function | Yes |
| Key function | Yes |
| Vestibule function | Yes |
| Obstacle detection | Yes |
| Automatic reversing | Yes |
| Push & Go | adjustable |
| Operation | Programme switch DPS |
| Parameter setting | GEZEconnects (PC + Bluetooth), Service terminal ST 220 |
| Standard conformity | DIN 18650, EN 16005 |
