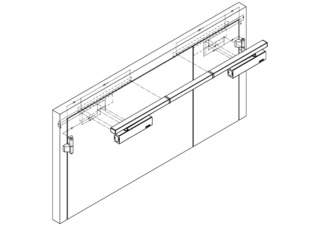

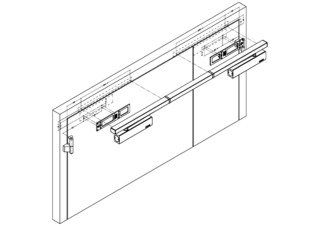

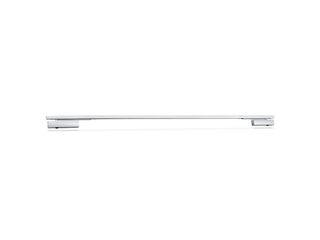

TS 5000 ISM ECline * Overhead door closer system with guide rail for barrier-free, easy-to-open double leaf doors up to 1250 mm leaf width in accordance with DIN 18040 with integrated closing sequence control
- System with two door closers TS 5000 ECline and an ISM guide rail
- Barrier-free in accordance with DIN 18040 up to EN5 (1250 mm leaf width)
- Closing force of EN3-5 with variable adjustment
- Can be used for right and left hand doors without conversion
- Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
- Integrated back check, slows down doors that are thrown open forcefully
- Visual closing force display for easy control of the setting
- All functions can be adjusted from the front and less installation time compared to standard systems
Application Areas
- Fire and smoke protection doors
- Right and left double leaf single-action doors
- Symmetrical and asymmetrical division of door possible
- Single-action doors up to 2500 mm hinge clearance and 1250 mm leaf width
- Minimum hinge clearance 1300 mm, minimum width of passive leaf 400 mm
- Door leaf installation hinge side
- Access for all in accordance with DIN 18040 up to EN5
Technical data
TS 5000 ISM ECline | |
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm | 1250 mm |
Leaf width (max.) | 1250 mm |
Type of installation | Door leaf installation hinge side |
Opening angle (max.) | 180 ° |
Minimum hinge clearance | 1300 mm |
Minimum passive leaf width | 400 mm |
Suitability for fire protection doors | Yes |
Closing force adjustable | Yes, stepless |
Adjustable closing speed | Yes |
Latching action adjustable | Yes, via valve |
Back check integrated | Yes, hydraulically adjustable |
Position of closing force adjustment | Front |
Visual closing force display | Yes |
Hold-open function | Optional |
Closing sequence control integrated | Yes |
