TS 5000 L * Overhead door closer with guide rail, for opposite hinge side, for single leaf doors of up to 1400 mm leaf width
- Closing force of EN2-6 with variable adjustment
- Can be used for right and left hand doors without conversion
- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
- Integrated back check, slows down doors that are thrown open forcefully
- Visual closing force display for easy control of the setting
Application Areas
- Fire and smoke protection doors
- Right and left single-action doors
- Single-action doors up to 1400 mm leaf width

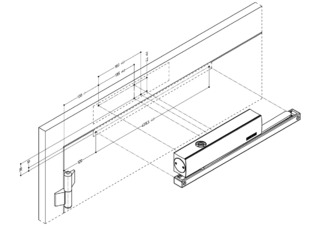

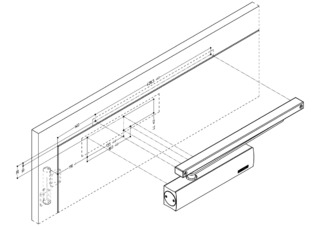

- Door leaf installation opposite hinge side and transom installation hinge side
Installation situations in reference objects and videos
GEZE TS 5000 L and guide rail BG lintel mounting TS 3/5000 L
The guide rail BG lintel mounting TS 3/5000 L offers the option of mounting directly in the lintel of a door without additional accessories such as a lintel bracket. © GEZE GmbH
Door closer - TS 5000 L + Swing door drive - TSA 160 NT at BMW Welt
The combination of the overhead door closer with guide rail and the electrohydraulic swing door drive means that visitors to the BMW world experience a wonderful sense of accessibility. © Robert Sprang / GEZE GmbH
Overhead door closer system with guide rail - TS 5000 L + swing door drive TSA 160 NT, BMW Welt
The TS 5000 L provides ease of access for visitors because heavy doors are slowed down close almost silently. These attributes also apply to the TSA 160 NT only, that it has also has the integrated Push & Go function. © Robert Sprang / GEZE GmbH
TS 5000 door closer installation video
The design of this overhead door closer for single leaf door uses clean lines. It is authorised for installation on fire and smoke protection doors.
Discreet design for contemporary swing doors: the GEZE TS 5000 door closer
The TS 5000 reliably closes doors and integrates well into the architecture © Nicolas Thome / GEZE GmbH
Technical data
| TS 5000 L | |
| Closing force in accordance with EN 1154 | EN 2 - 6 |
| Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm | 1100 mm |
| Leaf width (max.) | 1400 mm |
| Type of installation | Transom installation hinge side, Door leaf installation opposite hinge side |
| Opening angle (max.) | 120 ° |
| Suitability for fire protection doors | Yes |
| Closing force adjustable | Yes, stepless |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via valve |
| Back check integrated | Yes, hydraulically adjustable |
| Position of closing force adjustment | Front |
| Visual closing force display | Yes |
| Hold-open function | Optional |
